Description
Our new high-quality Indigo Filter Wheel has a 7 position carousel and can house 2inch mounted or 50mm unmounted filters.
One cable
operation
Filter Wheel requires a USB2 (Type B) cable only. This simplifies the connectivity as it does not require a separate power supply when used with USB control.
Thin
Design
The body of the Indigo filter wheel is aluminum CNC milled. High quality aluminum alloy allowed us to design the filter wheel as thin as possible (19.0mm, 19.6mm with adapters installed on both sides).
Orientation on
both adapters
Both sides of the filter wheel have M54 openings. The screw slide adapter (image below) allows you to properly align the orientation of your camera or telescope side. Just untie the screws and rotate the adapter to the desired orientation.
Orientation on both adapters
Both sides of the filter wheel have M54 openings. The screw slide adapter allows you to properly align the orientation of your camera or telescope side. Just untie the screws and rotate the adapter to the desired orientation.

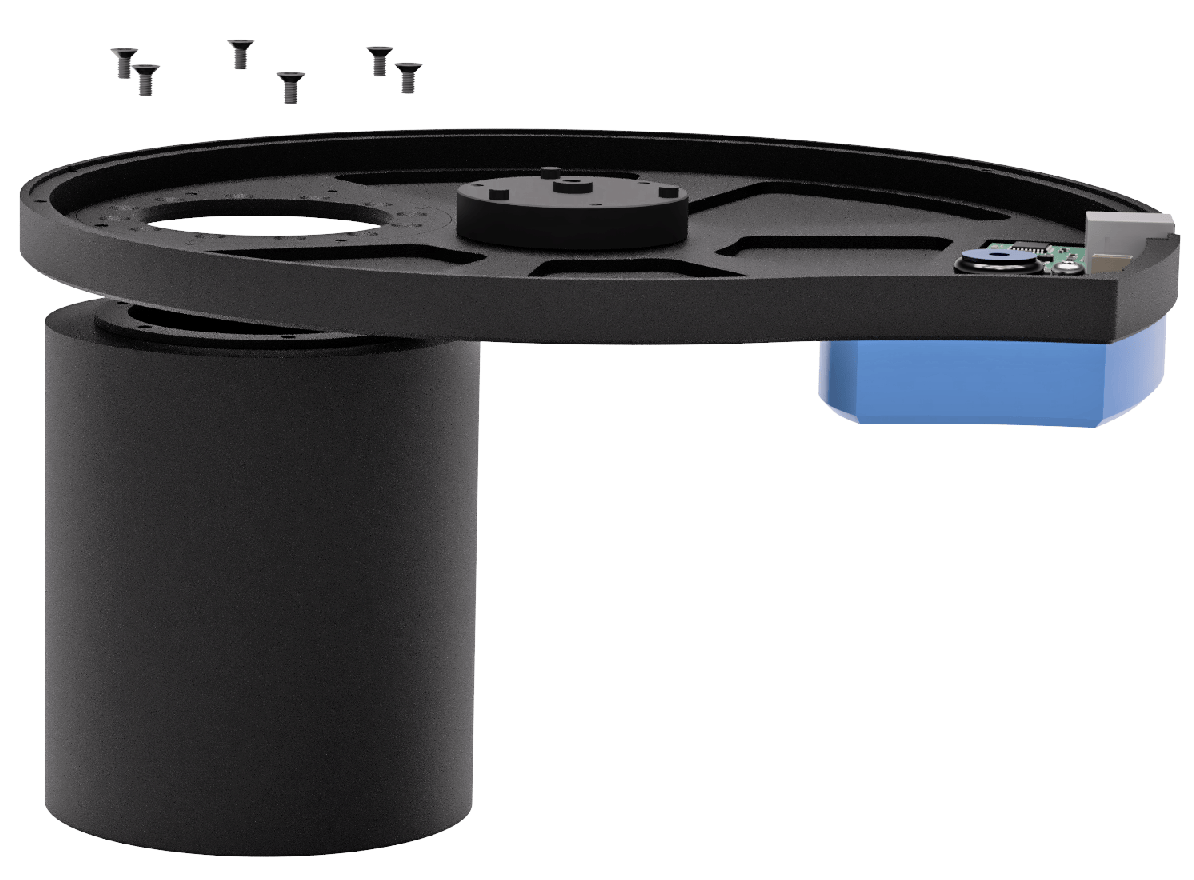

Accurate Filter Selection

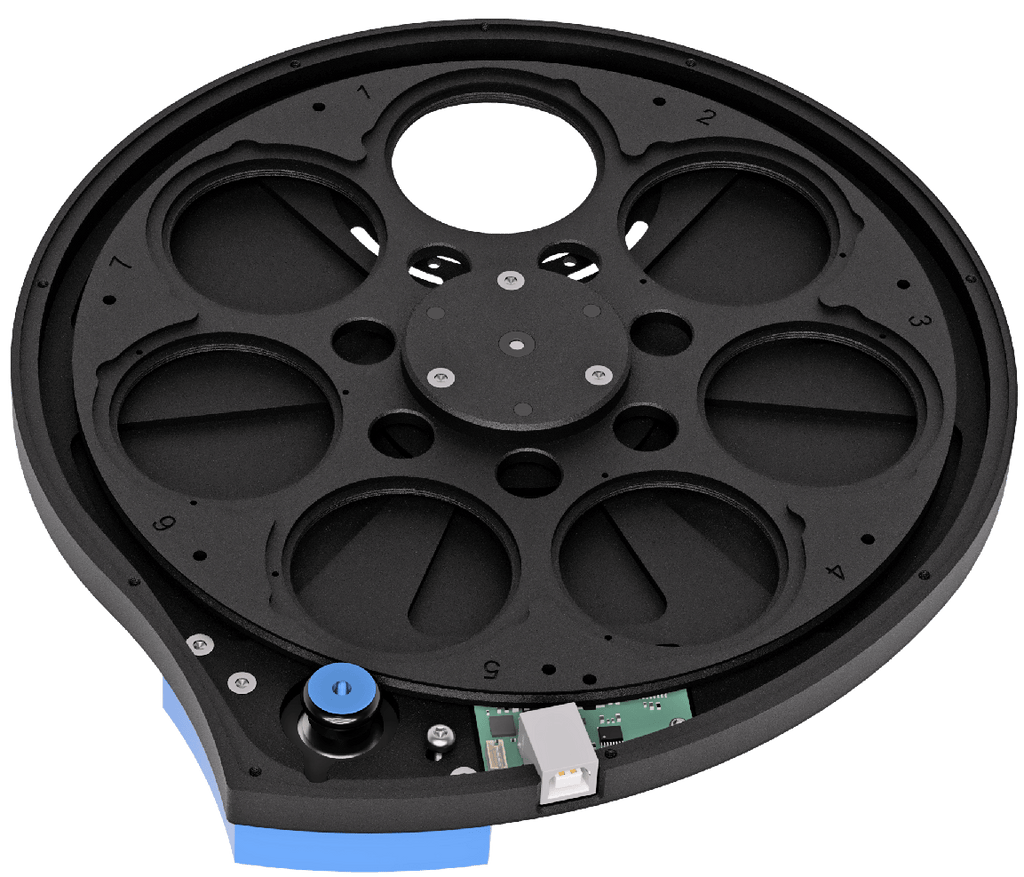

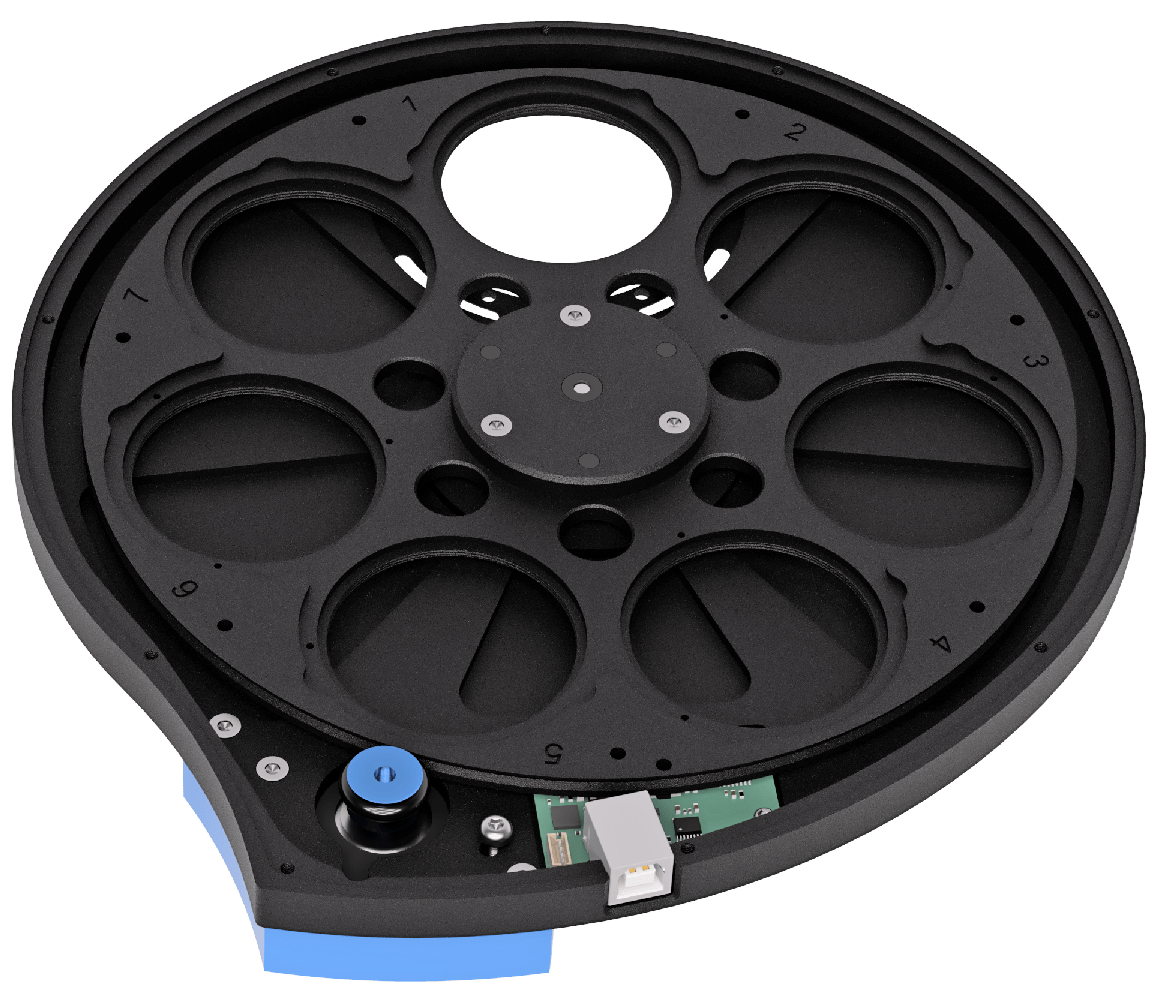

The carousel has seven (7) slots and accepts 2-inch mounted or 50mm unmounted filters.
Filter Wheel rotates clock or counterclockwise direction for filter selection. A combination of a direct drive stepper motor and optical encoders ensures that your filter selection is precise, and deadly accurate on every filter location.
We strongly suggest our photographic 2-inch filters in combination with the Indigo Filter Wheel.
Thin Design
The body of the Indigo filter wheel is aluminum CNC milled. High-quality aluminum alloy allowed us to design the filter wheel as thin as possible
(19.0mm, 19.6mm with adapters installed on both sides).
Camera Connection
The 6 screw holes on the camera side allow direct connection with astronomical cameras that follow the same 6 x hole pattern (62mm diameter pattern). A neat feature allows you to reduce the total back focus instead of placing adapters.
Mechanical Design
Telescope Connection
