Description
Highlights
- Multi-Purpose Vario-Finder: 45 ° viewing with upright frame, 25mm eyepiece with illuminated measuring reticle and MQR IV finder holder, 4,5° field of view
- Opening 61mm with Baader Phantom Group Coating, focal length 250mm, aperture ratio 1: 4.1
- Optionally usable as Guide Scope and as 60mm Spotting Scope
- Including EQ dovetail / photo tripod adapter with polar scope reticle and illumination device
- The Baader MQR can be used either in full height or in a low profile configuration
- Tthe V-dovetail and ring-base-plate of the MQR-finder-holder can be directly mounted onto each other without the intermediate spacer, with the help of two (optional) M5x12 mm screws. This allows to use the finder in a low profile configuration as it is desirable for Schmidt-Cassergrain OTAs
- The spacer itself is equipped with a mini-weaver-style dovetail so that it can carry a SkySurfer III or SkySurfer V red dot finder as well
-

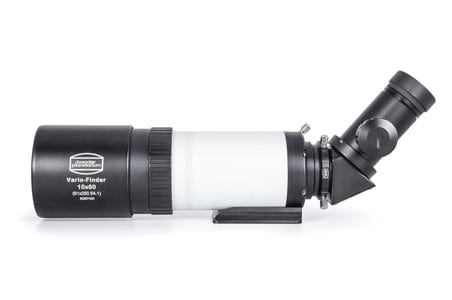

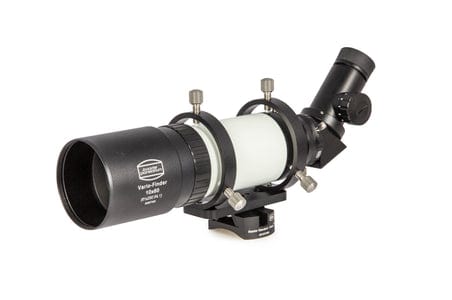

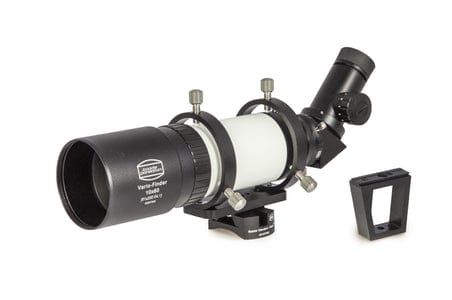

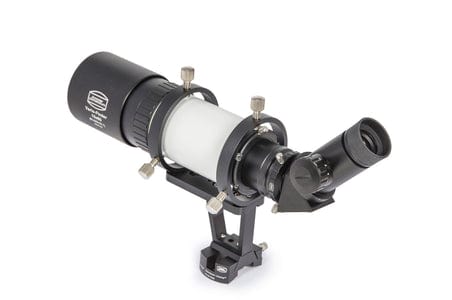

Baader Multi-Purpose Vario-Finder 10x60
The optical data of the lens:
- 61 mm aperture with BAADER Phantom Coating® Group
- Focal length 250 mm
- Focal ratio 1:4.1
The technical data of the Vario Finder:
Since 2015: easily accessible focus knob (1)Possible applications of the BAADER Multi Purpose Vario Finder:
Scope of supply:
- BAADER MultiPurpose Vario Finder 10 x 60mm
- 45° AMICI Prism for erect image
- 25mm eyepiece with illuminated measuring recticle
- EQ dovetail with ¼" photo thread
Application examples
Specifications
Additional Information
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2957465 |
| EAN Code | 4047825024671 |
| Weight | 1.2 |
